Key Features
Flexible multi systems for modern homes with space-saving outdoor units.
-
Space SavingConnect multiple indoor units to one compact outdoor unit saving space along the external walls of the home and eliminating the need to install multiple outdoor units for each indoor unit.
-
Extensive indoor unit line-upChoose from a range of 23 indoor models from six different styles (e.g.,wall mounted, bulkhead, slimline, mini duct, compact cassette, and floor mounted). With a wide range of options to choose from, there’s a combination to suit almost any room.
-
Central ControlUnits can be controlled individually via a dedicated remote or simultaneously through a central controller. This provides flexibility and convenience, delivering a unified setting of room temperature and airflow volume.
-
Individual Room Temperature ControlEach indoor unit can be independently temperature controlled using individual remotes to provide indoor comfort where and when it is needed.
Download the brochure
Get the brochure as a handy PDF
Refer to connection chart for allowable combinations.
Download PDF

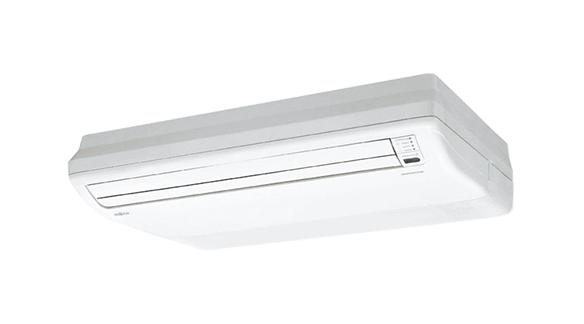

Indoor Units
With such a wide range of options to choose from, there’s an indoor unit combination to suit almost any home.
d4d0c83e-e115-4489-8546-3fc49822fe7f.jpg?sfvrsn=e5cc075b_1)
Outdoor Units
Connect multiple indoor units to one compact outdoor unit for greater installation flexibility and space-saving options.
Outdoor Units
2 to 3 rooms
This outdoor unit connects 2 to 3 indoor units.
f1be6cf7-2c60-4b64-800a-075a11aa02fb.jpg?sfvrsn=5da3526d_1)

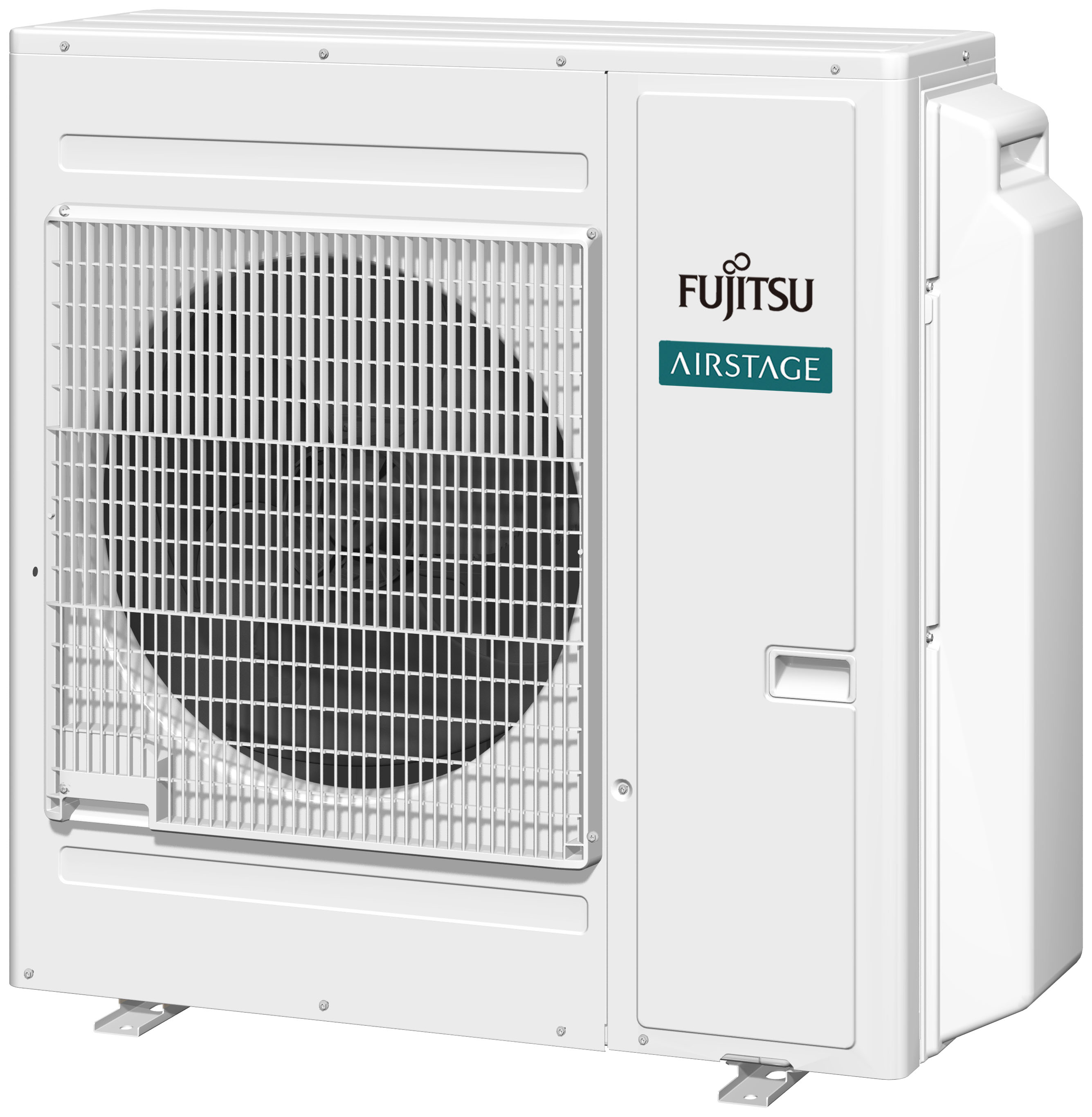

Outdoor Units
2 to 4 rooms
This outdoor unit connects 2 to 4 indoor units.
| Attribute | AOTH24KBCA3 6.80kW(C) 8.00kW(H) View model | AOTH30KBTA4 8.00kW(C) 9.60kW(H) View model |
|---|---|---|
|
Operation Type
|
Reverse Cycle | Reverse Cycle |
|
Maximum Connectable Indoor Units
|
3 | 4 |
|
Power Source
V/Ph/Hz
|
230 / 1 / 50 | 230 / 1 / 50 |
|
Capacity Class
kW
|
6.8 | 8 |
|
Cooling Capacity
kW (Rated (Min - Max))
|
6.80 (1.8 - 8.5) | 8.00 (2.4 - 10.1) |
|
Heating Capacity
kW (Rated (Min - Max))
|
8.00 (2 - 9.2) | 9.60 (3 - 12) |
|
Input Power Cooling
kW (Rated (Max))
|
1.74 (2.65) | 2.05 (2.88) |
|
Input Power Heating
kW (Rated (Max))
|
1.76 (2.35) | 2 (3.25) |
|
EER Cooling
kW/kW
|
3.9 | 3.9 |
|
COP Heating
kW/kW
|
4.54 | 4.8 |
|
Total Cooling Seasonal Performance Factor Residential
kW (Hot / Average / Cold)
|
5.601 / 5.332 / 5.642 | 5.547 / 4.535 / 5.178 |
|
Heating Seasonal Performance Factor Residential
kW (Hot / Average / Cold)
|
5.592 / 5.185 / 4.537 | 6.062 / 6.757 / 6.263 |
|
Total Cooling Seasonal Performance Factor Commercial
kW (Hot / Average / Cold)
|
5.992 / 6.178 / 6.662 | 5.548 / 4.183 / 4.951 |
|
Heating Seasonal Performance Factor Commercial
kW (Hot / Average / Cold)
|
5.592 / 5.185 / 4.537 | 5.663 / 5.72 / 5.402 |
|
Outdoor Sound Pressure
dBA (Cooling / Heating)
|
46 / 52 | 48 / 54 |
|
Outdoor Sound Power
dBA
|
61 | 65 |
|
Outdoor Unit Dimensions
mm (Height x Width x Depth)
|
716 x 820 x 315 | 884 x 820 x 315 |
|
Outdoor Unit Weight
kg
|
46.00 | 59.00 |
|
Pipe Length
m (Max (Precharged))
|
50 (30) | 70 (40) |
|
Operation Range Cooling
°CDB (Min to Max)
|
-10 to 50 | -10 to 50 |
|
Operation Range Heating
°CDB (Min to Max)
|
-15 to 24 | -15 to 24 |
|
Refrigerant Type
|
R32 | R32 |
|
Refrigerant Amount
g
|
1,800 | 2,500 |
Show all specifications
Collapse all specifications
