Mid Static Slimline R32 range
8.50kW
10.00kW
ARTH30KMTAP
| Product Category | Mid Static Slimline R32 |
| Product Range | Mid Static Slimline R32 range |
| Capacity | 8.50kW Cooling 10.00kW Heating |
| Model Number | ARTH30KMTAP |
Technical Specifications
| Indoor unit | ARTH30KMTAP |
| Outdoor unit | AOTH30KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min - Max)) | 8.50 (2.8 - 10.3) |
| Heating Capacity kW (Rated (Min - Max)) | 10.00 (2.7 - 11.3) |
| Input Power Cooling kW (Rated (Max)) | 2.6 (4.28) |
| Input Power Heating kW (Rated (Max)) | 2.62 (4.44) |
| EER Cooling kW/kW | 3.5461 |
| COP Heating kW/kW | 4.1151 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 2.5 / 2.5 / 2.5 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3 / 2.5 / 2 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.781 / 4.91 / 5.264 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.036 / 4.472 / 3.899 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.781 / 4.91 / 5.264 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.731 / 4.361 / 3.834 |
| Running Current amps (Cooling / Heating) | 11 / 11.2 |
| Moisture Removal l/hr | 1.6 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 38 / 28 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 38 / 28 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 51 / 53 |
| Outdoor Sound Power dBA | 69 |
| Static Pressure Range PA (Min to Max) | 50 to 150 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 541.67 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 541.67 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 240 x 1400 x 700 |
| Indoor Unit Weight kg | 42.00 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 788 x 940 x 320 |
| Outdoor Unit Weight kg | 52.00 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Pipe Length m (Max (Precharged)) | 50 (30) |
| Max Height Difference m | 30 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 1,900 |
Show all specifications
Collapse all specifications
Dimensions
Ducted Slimline Mid Static Indoor model ARTH30KMTAP
Ducted Slimline Mid Static Outdoor model AOTH30KBTA
What’s included in your purchase
ARTH30KMTAP
Indoor Unit

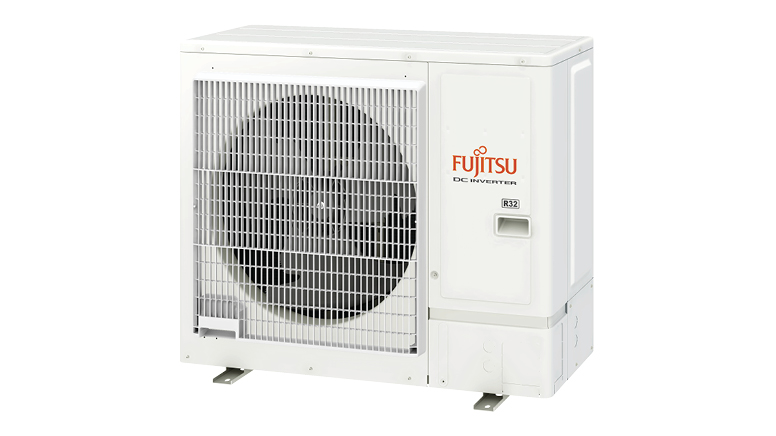

AOTH30KBTA
Outdoor Unit
UTY-RNRT
Wired Remote Controller - Backlit Touch Panel Wall Controller
Optional Parts
UTY-ANY1
WiFi Control - anywAiR Technology Ducted Controller
UTY-CDPXZC
Zone Control Interface Module - 8 Zones, 24V
UTY-CDPXZD
Zone Control Interface Module - 8 Zones, 240V
UTY-CDRXZC
ZONE CONTROL INTERFACE MODULE (R32, 8 ZONES, 24V)
UTY-CDRXZD
ZONE CONTROL INTERFACE MODULE (R32, 8 ZONES, 240V)
UTY-LBTYM
Wireless Remote Controller - Wireless Remote Controller & Infra-Red Receiver Kit
4a8afc9e-7b3e-4ced-b821-5274459e61e9.png?sfvrsn=2f619fde_1)
UTY-NXT-BOX
WiFi Control
.jpg?sfvrsn=c6460150_1)
UTY-RHRYT
Wired Remote Controller - Simple Controller Without Mode Button
UTY-RNRYT5
Wired Remote Controller - Backlit Touch Panel Wall Controller
UTY-RSNYN
Wired Remote Controller - Simple Controller With Mode Button
UTY-RSRYT
Wired Remote Controller - Simple Controller With Mode Button
UTY-RVNYN
Wired Remote Controller - Backlit Wired Controller
.jpg?sfvrsn=f135b9b4_1)
UTY-RVRY
Wired Remote Controller - KAGAMI Wired Remote Controller
UTY-VTGX Network Converter
Network Converter
UTD-LFDA
UTY-TERX
UTY-VKSX Single Unit KNX Interface
KNX COVERTER INTERFACE
UTY-VMSX Single Unit Modbus Converter
MODBUS Convertor for Indoor Unit
UTY-VTGXV
UTY-XCSX
External Input & Output PCB
UTY-XSZX
Remote Temperature Sensor
UTY-XWZXZ3
External Connect Kit
UTY-XWZXZG
External Connection Wire
UTZ-GXDA
Key features
The Fujitsu General Mid Static Slimline R32 air conditioning models are designed with a narrow 240mm high chassis and a built-in drain pump, giving flexibility for the system to be installed in tighter bulkhead and ceiling applications.
-
Zone ControlThis function enables efficient air-conditioning by selecting specific zones from the various zones divided within the indoor space. -
Auto RestartShould there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
-
Auto ChangeoverThe unit automatically switches between operating modes based on the temperature setting and room temperature.
-
Blue Fin Heat ExchangerCorrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
-
Connectable Distributing DuctSystems are capable of attaching a field-supplied branch ducts distributing the airflow.
-
Connectable Fresh Air DuctAllows introduction of fresh air to the occupied space.
-
Demand ResponseThis product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.
-
Economy ModeLimits the maximum operation current, and performs operation with the power consumption suppressed.
-
Filter SignSelect appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.
-
On-Off TimerON-OFF timer can be set to operate once every 24 hours.
-
Program TimerThis timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
-
Weekly TimerDifferent ON-OFF times can be set for up to 7 days.
-
In-Built Drain PumpThe drain pump is in-built into the system.
-
Automatic Fan Speed AdjustmentThe micro-processor automatically adjusts air flow to follow changes in room temperature
-
Operating Temperature Range 50°CThe maximum guaranteed operating temperature range to 50 degrees in cooling mode.
-
Demo ModeThis function allows the indoor unit to be operated alone at exhibitions and showrooms.
