High Static Three Phase range
10.50kW
12.10kW
ARTG36LHTB
| Product Category | High Static Three Phase |
| Product Range | High Static Three Phase range |
| Capacity | 10.50kW Cooling 12.10kW Heating |
| Model Number | ARTG36LHTB |
Technical Specifications
| Indoor unit | ARTG36LHTB |
| Outdoor unit | AOTG36LATT |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min - Max)) | 10.50 (5.0 - 11.4) |
| Heating Capacity kW (Rated (Min - Max)) | 12.10 (5.1 - 14.0) |
| Input Power Cooling kW (Rated (Max)) | 3.18 (5.63) |
| Input Power Heating kW (Rated (Max)) | 3.3 (5.63) |
| EER Cooling kW/kW | 3.3 |
| COP Heating kW/kW | 3.67 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 2.5 / 2.5 / 2.5 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 2.5 / 2.0 / 2.0 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.491 / 4.045 / 4.144 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.341 / 3.937 / 3.529 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.851 / 4.893 / 5.207 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.342 / 4.097 / 3.747 |
| Running Current amps (Cooling / Heating) | 4.6 / 4.8 |
| Moisture Removal l/hr | 1.5 |
| Indoor Sound Pressure Cooling dBA (High / Low) | 41 / 36 |
| Indoor Sound Pressure Heating dBA (High / Low) | 41 / 36 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 51 / 53 |
| Outdoor Sound Power dBA | 67 |
| Static Pressure Range PA (Min to Max) | 60 to 210 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 695 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 695 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 400 x 1050 x 500 |
| Indoor Unit Weight kg | 39.00 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 1290 x 900 x 330 |
| Outdoor Unit Weight kg | 104.00 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Pipe Length m (Max (Precharged)) | 75 (30) |
| Max Height Difference m | 30 |
| Operation Range Cooling °CDB (Min to Max) | -15 to 46 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R410A |
Show all specifications
Collapse all specifications
Dimensions
Ducted High Static Three Phase Indoor Model ARTG36LHTB
Ducted High Static Three Phase Outdoor Model AOTG36LATT
What’s included in your purchase
ARTG36LHTB
Indoor Unit

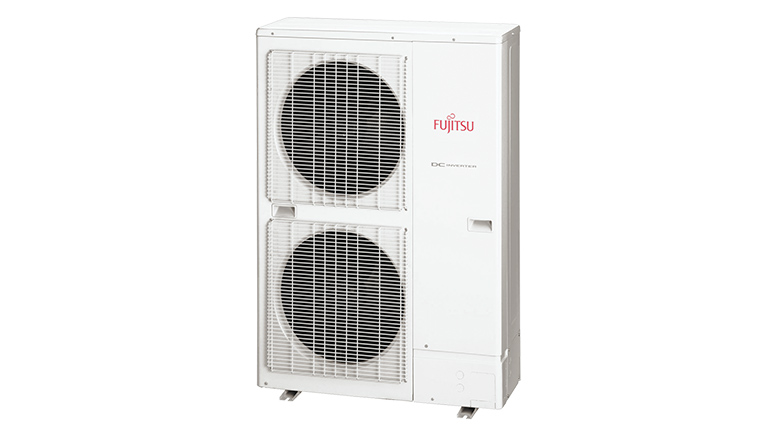

AOTG36LATT
Outdoor Unit
UTY-RVNYN
Wired Remote Controller - Backlit Wired Controller
Optional Parts
UTY-ANY1
WiFi Control - anywAiR Technology Ducted Controller
UTY-CDPXZC
Zone Control Interface Module - 8 Zones, 24V
UTY-CDPXZD
Zone Control Interface Module - 8 Zones, 240V
UTY-LRHYM
Wireless Remote Controller - Wireless Remote Controller & Infra-Red Receiver Kit
UTY-RNNYN
Wired Remote Controller
UTY-RSNYN
Wired Remote Controller - Simple Controller With Mode Button
UTD-ECS5A
External Control Wiring Kit
UTY-XCZZ1
Smart Control Option PCB
UTY-XSZX
Remote Temperature Sensor
UTY-XWZXZ2
External Connect Kit
Key features
Works at an optimum setting to create a comfortable home environment.
-
Zone ControlThis function enables efficient air-conditioning by selecting specific zones from the various zones divided within the indoor space. -
All DCWith All DC, electricity loss is decreased and power consumption reduced.
-
Auto RestartShould there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
-
Auto ChangeoverThe unit automatically switches between operating modes based on the temperature setting and room temperature.
-
Blue Fin Heat ExchangerCorrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
-
Connectable Distributing DuctSystems are capable of attaching a field-supplied branch ducts distributing the airflow.
-
Connectable Fresh Air DuctAllows introduction of fresh air to the occupied space.
-
Economy ModeLimits the maximum operation current, and performs operation with the power consumption suppressed.
-
Filter SignSelect appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.
-
On-Off TimerON-OFF timer can be set to operate once every 24 hours.
-
Program TimerThis timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
-
Weekly TimerDifferent ON-OFF times can be set for up to 7 days.
-
Automatic Fan Speed AdjustmentThe micro-processor automatically adjusts air flow to follow changes in room temperature
Download PDF
This product is part of the Residential and Commercial High Static Three Phase range
