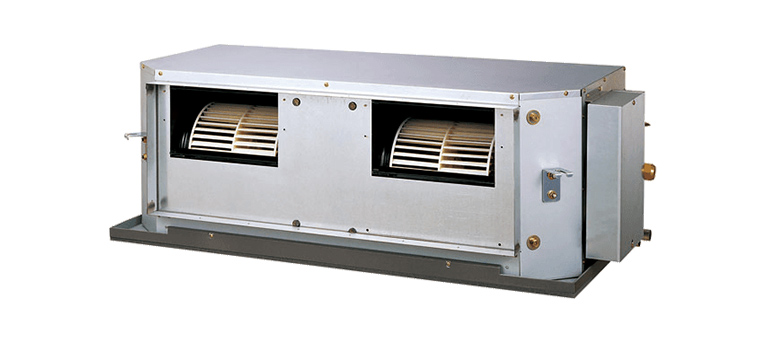

High Static Pressure Duct range
12.50kW
14.00kW
ARXC045GTEH
| Product Category | Airstage VRF |
| Product Range | High Static Pressure Duct range |
| Capacity | 12.50kW Cooling 14.00kW Heating |
| Model Number | ARXC045GTEH |
Technical Specifications
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 12.5 |
| Running Current amps (Cooling / Heating) | 3.14 / 3.14 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 49 / 42 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 49 / 42 |
| Static Pressure Range PA (Min to Max) | 100 to 250 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 972 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 972 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 400 x 1050 x 500 |
| Indoor Unit Weight kg | 46.00 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Refrigerant Type | R410A |
