Mid Static Slimline R32 range
Capacity Class 5.00 kW
ARTH18KMTAP
| Product Category | Multi Systems R32 |
| Product Range | Mid Static Slimline R32 range |
| Capacity Class | 5.00 kW |
| Model Number | ARTH18KMTAP |
Technical Specifications
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 5 |
| Running Current amps (Cooling / Heating) | 0.3 / 0.3 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 33 / 23 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 33 / 23 |
| Static Pressure Range PA (Min to Max) | 50 to 150 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 300 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 300 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 240 x 1000 x 700 |
| Indoor Unit Weight kg | 31.00 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 12.7 |
| Operation Range Cooling °CDB (Min to Max) | 18 to 32 |
| Operation Range Heating °CDB (Min to Max) | 16 to 30 |
| Refrigerant Type | R32 |
Show all specifications
Collapse all specifications

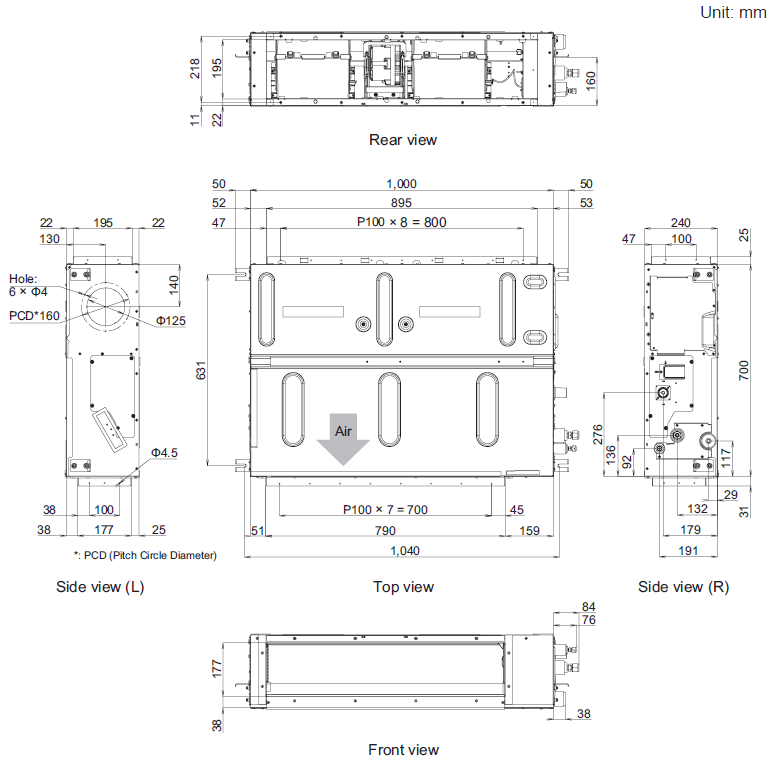

Dimensions
Download PDF
This product is part of the Residential and Commercial Mid Static Slimline R32 range
