AGTG09KVCA
Product Category Floor/Ceiling Consoles
Product Range Floor Console range
Capacity 3.50kW Cooling 4.50kW Heating
Model Number AGTG12KVCA

Technical Specifications

Indoor unit AGTG12KVCA
Outdoor unit AOTG12KVCA
Operation Type Reverse Cycle
Power Source V/Ph/Hz 230 / 1 / 50
Capacity Class kW 3.5
Cooling Capacity kW (Rated (Min - Max)) 3.50 (0.9 - 4.3)
Heating Capacity kW (Rated (Min - Max)) 4.50 (0.9 - 6.1)
Input Power Cooling kW (Rated (Max)) 0.85 (2.12)
Input Power Heating kW (Rated (Max)) 1.11 (2.15)
EER Cooling kW/kW 4.1
COP Heating kW/kW 4.05
Star Rating Cooling (0-10) (Hot / Average / Cold) 4.5 / 4 / 4.5
Star Rating Heating (0-10) (Hot / Average / Cold) 3 / 2.5 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 6.373 / 5.898 / 6.224
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.753 / 4.316 / 3.841
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 7.338 / 7.901 / 9.357
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.752 / 4.485 / 4.08
Running Current amps (Cooling / Heating) 3.8 / 4.8
Moisture Removal l/hr 1.8
Indoor Sound Pressure Cooling dBA (High / Quiet) 40 / 22
Indoor Sound Pressure Heating dBA (High / Quiet) 43 / 22
Outdoor Sound Pressure dBA (Cooling / Heating) 44 / 49
Outdoor Sound Power dBA 58
Air Circulation (Indoor - High Fan) Cooling l/sec 158
Air Circulation (Indoor - High Fan) Heating l/sec 181
Indoor Unit Dimensions mm (Height x Width x Depth) 600 x 740 x 200
Indoor Unit Weight kg 14.00
Outdoor Unit Dimensions mm (Height x Width x Depth) 632 x 799 x 290
Outdoor Unit Weight kg 38.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 9.52
Pipe Length m (Max (Precharged)) 20 (15)
Max Height Difference m 15
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R32

Dimensions

What’s included in your purchase

AGTG12KVCA

Indoor Unit

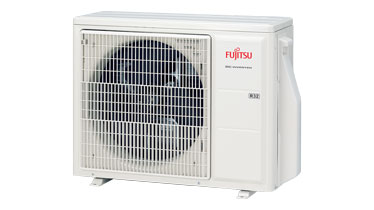

AOTG12KVCA

Outdoor Unit

AR-REM7E

Wireless Remote Controller

Optional Parts

UTY-RHRYT

Wired Remote Controller - Simple Controller Without Mode Button

UTY-RNRYT5

Wired Remote Controller - Backlit Touch Panel Wall Controller

UTY-RSRYT

Wired Remote Controller - Simple Controller With Mode Button

UTY-RVRY

Wired Remote Controller - KAGAMI Wired Remote Controller

UTY-TWRXZ3

UTY-VKSX Single Unit KNX Interface

KNX COVERTER INTERFACE

UTY-VMSX Single Unit Modbus Converter

MODBUS Convertor for Indoor Unit

WHITE BOX

UTY-XWZXZ5

External Control Wiring Kit

Key features

These home air conditioner units are installed to sit on the floor when wall space is limited, providing efficient cooling and heating for comfortable living.

  • All DC
    All DC

    With All DC, electricity loss is decreased and power consumption reduced.

  • Apple Catechin Filter
    Apple-Catechin Filter

    Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.

  • Auto Restart
    Auto Restart

    Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

  • Auto Shut Louvre
    Auto Shut Louvre

    The auto shut louvres close or open automatically when the unit stops or starts.

  • Auto Changeover
    Auto Changeover

    The unit automatically switches between operating modes based on the temperature setting and room temperature.

  • Automatic Air Flow Adjustment
    Automatic Air Flow Adjustment

    The micro-processor automatically adjusts the air flow to follow changes in room temperature.

  • Automatic Louvre
    Automatic Louvre

    The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

  • Blue Fin Heat Exchanger
    Blue Fin Heat Exchanger

    Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

  • Economy Mode
    Economy Mode

    Limits the maximum operation current, and performs operation with the power consumption suppressed.

  • Long Life Ion Deodorisation Filter
    Long-Life Ion Deodorisation Filter

    The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.

  • ON-OFF Timer
    On-Off Timer

    ON-OFF timer can be set to operate once every 24 hours.

  • Powerful Mode
    Powerful Mode

    Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable.

  • Program Timer
    Program Timer

    This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

  • Sleep Timer
    Sleep Timer

    The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

  • Super Quiet Mode
    Super Quiet Mode

    The indoor units fan can operate at a low speed to produce quieter operation.

  • Up Down Swing
    Up/Down Swing Louvre

    The up/down louvre automatically swings up and down.

  • v-PAM
    V-PAM

    v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

  • Washable Panel
    Washable Panel

    Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

  • Weekly Timer
    Weekly Timer

    Different ON-OFF times can be set for up to 7 days.

  • Connect Kit

  • 10 Degree Heat
    10°C Heat Operation

    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

  • Low noise mode
    Outdoor Unit Low Noise Mode

    The compressor speed and the outdoor unit fan speed are limited to reduce the operational noise.

  • 45 GAS (REFRIGERANT) DETECTOR
    Gas(Refrigerant) detector

    For user additional safety measures, the indoor unit is equipped with a refrigerant leak detection sensor.

  • 44 0.5DEGREES INCREMENTS
    0.5°C Increments

    The remote control now allows you to set temperature in 0.5°C increments, giving you a better control on your comfort.

Operating Manual

Click on the Download button below to get the pdf

Download PDF
